The Spillway Question
www.landdesk.org

The Spillway Question

Was I too rash in declaring Hoover Dam's spillways obsolete? Plus some news.

Jonathan P. Thompson
Apr 1
Comment7
Share

But first …

THE NEWS: President Joe Biden yesterday invoked the Defense Production Act to encourage domestic production of “green metals” such as lithium, cobalt, and nickel, used in batteries for electric vehicles and grid-scale storage. He also said he will tap the Strategic Petroleum Reserve to add 1 million barrels per day for the next six months to the global oil pool in an effort to bring down soaring gasoline prices and maybe improve his approval ratings.

THE CONTEXT: Electric vehicles are basically big, rolling batteries, and batteries need minerals such as lithium, nickel, and cobalt. Currently, most of this stuff is mined overseas, and Russia is one of the world’s top producers of nickel, cobalt, and palladium (which is used in catalytic converters). As demand increases, supplies get scarce, and expensive, slowing the transition to electric cars.

So, Biden decided to dust off a Cold War-era tool and put it to use during this Cold War redux. It allows the government to fund feasibility studies for mining and recycling projects and related research and development. It does not roll back any environmental protections. Nor does it apply to uranium, though efforts are afoot in Congress to ban Russian uranium imports and create a national uranium reserve, each of which could revive the near-dormant industry in Utah and Wyoming.

Biden’s move is likely to add fuel to a high-metal-price-sparked mining boom that’s kicking up across the West. Rep. Raul Grijalva’s not too stoked about that part. In a statement, he said: “There’s no situation in which I’m going to feel good about giving even more subsidies to the mining industry. Hardrock mining is governed by a severely outdated 150-year-old law that lets mining companies get away with destroying the environment and hurting nearby communities, without paying a cent in federal royalties or paying to clean up toxic abandoned mine lands.”

It’s worth noting that the Carter administration used the Defense Production Act to pour subsidies into “synfuel” production. That gave rise to a massive oil shale mine and retorting center in Western Colorado. It crashed spectacularly a few years later when the subsidies were halted, bringing down a good portion of the region’s economy with it.

The administration on Thursday also quietly called for public input on how to reform the antiquated mining laws Grijalva was talking about.

Meanwhile, since it is apparently futile to ask Americans to reduce their demand for petroleum, Biden has decided to up supplies in an effort to tweak prices. It might work: The price for West Texas Intermediate crude, the benchmark for American oil, dropped on the news. But that’s just oil. Now it’s up to gasoline suppliers to pass their savings onto the consumer.

That might not be easy since it would mean giving up a portion of the windfall profits oil companies have been raking in lately. Just one example: Jeff Hildebrand, the founder and CEO of Hilcorp, saw his net worth balloon from $6.5 billion a year ago to $14 billion now, according to the Bloomberg Billionaire Index. Hilcorp has extensive holdings in the San Juan Basin of New Mexico as well as in Alaska. The company’s facilities are also the industry’s leading emitter of methane.

Biden also called on domestic oil producers to go on a public lands drilling spree by putting to use the 9,000 unused drilling permits and 12 million acres of undeveloped oil and gas leases.


Now, it’s spillway time!

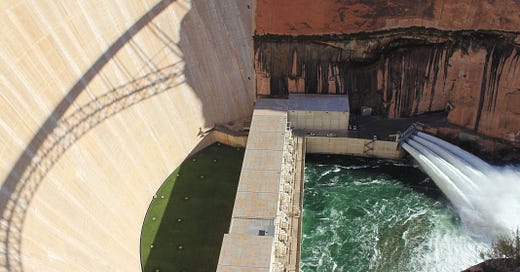

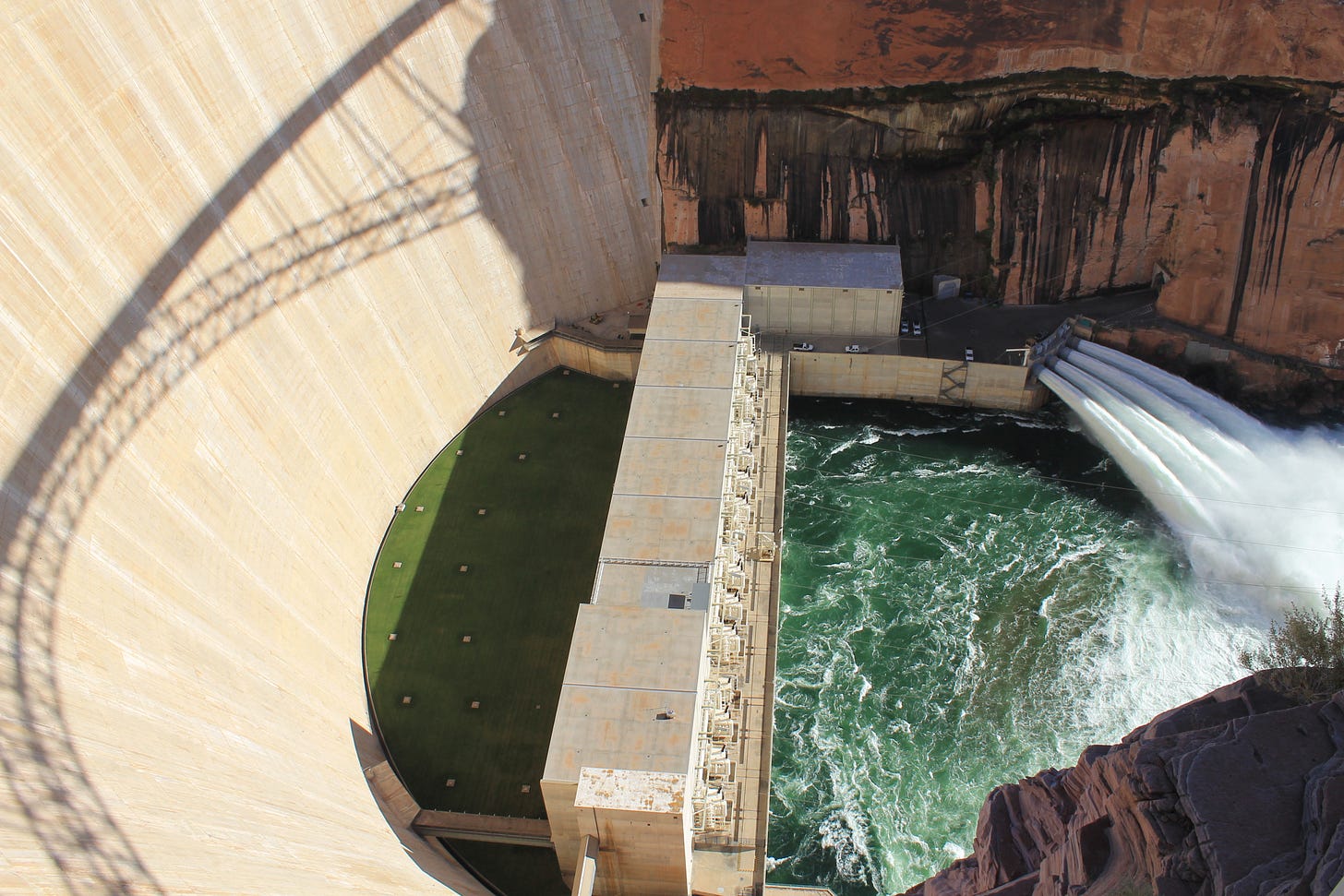

A rare sight: Water shoots out of Glen Canyon Dam’s river outlets or “jet tubes” during a high-flow experimental release in 2013. Typically all of the dam’s outflows go through penstocks to turn the turbines on the hydroelectric plant. The outlets are only used during these experiments, meant to redistribute sediment downstream, and when lake levels get too high. Spillways are used as a last, last resort. The river outlets may be used again in the not so distant future: Once Lake Powell’s surface level drops below 3,490 feet, or minimum power pool, water can no longer be run through the turbines and can only be sent to the river below via the outlets. This is cause for concern because the river outlets were not built for long-term use. Jonathan P. Thompson photo.

If you read my impressions from a visit to Hoover Dam, you’ll remember that I ended it with these sentences describing the spillway at the dam (not the dam, itself): “It’s beautiful in the way functional structures can be. And yet, it no longer serves any real function—and never will—except, perhaps, as a reminder of what was.”

When the venerable LA Times environment reporter Sammy Roth tweeted out the description, this was one of the responses:

Twitter avatar for @ryrivardRy Rivard @ryrivard
@Sammy_Roth @Land_Desk Perhaps human arrogance is making statements like that. It was used less than 40 years ago and, though it seems unlikely today, "less appreciated are the risks of catastrophic flooding in the basin."
For a while in 1983, sheets of plywood were all that kept the mighty Glen Canyon Dam from overflowingLake Powell wasn’t always half empty. In 1983, the reservoir filled nearly to overflowing, saved by resourceful engineers and a lot of concrete.azcentral.com

March 30th 2022

1 Retweet3 Likes

Okay, well, I’m not sure how it’s “arrogant” to say that a spillway will never be used again, but a subsequent Twitter discussion fleshed out the bigger point he was trying to make: Just as climate change can exacerbate drought, warming can also trigger extremely abundant precipitation, leading to catastrophic flooding a la 1983, which could fill up the reservoirs again and put the spillways back into use. Others piped in, as well, pointing to Lake Oroville in California, which went from nearly empty to overflowing and back to empty over the course of several years.

It got me thinking that maybe I had been too rash in asserting the spillways would never be needed again. After all, anything’s possible: We know that the 1911 Flood sent around 300,000 cubic feet per second or more past the current Glen Canyon Dam site (compared to the 1983 flows of 120,000 cfs), and paleoflood investigations suggest deluges in the distant past have topped out above 600,000 cfs—a Biblical sort of event.

Could a climate change-induced megaflood of this magnitude reverse the effects of a climate change-induced megadrought and fill Powell and Mead back to the brim?

It seems unlikely.

The issue here is one of scale. Lake Powell and Lake Mead are both gargantuan in size. Powell is 186 miles long when full with over 1,900 miles of coastline. It can store nearly 27 million acre feet (af) of water (minus a million or two due to siltation). Contrast that to Lake Oroville, with its relatively minuscule 3.5 million acre feet of capacity.

Powell currently has less than 6 million acre feet in it, leaving 20 million acre feet of empty storage that needs to be filled before water would reach the spillways. Lake Mead’s numbers are similarly huge.

Now, the monster flood of 650,000 cfs would dump 1.3 million acre feet of water per day into the reservoir. So, you’d need two weeks of this to fill up Powell—and Lake Mead would still have 20 million acre feet of unused capacity, meaning you’d need another two weeks of deluge to fill it up. Megafloods usually don’t last that long—the 1911 Flood brought up river levels for several days, not weeks (and Colorado river flows for the entire year were unremarkable). And besides, 650,000 cfs isn’t going to sneak up on the dam operators. They’d see it coming and start releasing water from the reservoirs ahead of time, obviating the need to use the spillways.

Conclusion: A sudden megaflood is not going to cause either Mead or Powell—and certainly not both of them—to overflow.

But what about a string of really wet years, when record-setting snowfall is followed by torrential summer rains? We know this is possible, because it’s exactly what happened in 1983 through 1986, the last time the spillways were used. We also know, from streamflow reconstructions back to the 8th Century, that the wet and wild 1980s were not entirely unprecedented. They were, however, an anomaly, and they are among the wettest four consecutive years on record.

So, let’s assume a repeat. Would that fill the dams to overflowing and put the spillways back to use? Perhaps.

Here are the numbers as of March 30:

  • Lake Powell Current storage: 5.8 million acre feet (MAF)

  • Full capacity: 27 MAF

  • Minimum annual release: 8.23 MAF

  • Annual evaporation: .4 MAF

  • Lake Mead current: 8.6 MAF

  • Full capacity: 28.2 MAF

  • Minimum annual release: 9.6 MAF

  • Annual evaporation: .6 MAF

  • Las Vegas withdrawal: .3 MAF

These were the actual inflows into Lake Powell during the super soaker years from 1983-1986, also known as the only time the spillways at Glen Canyon and Hoover Dams were actually used. It didn’t go so well, but we’ll get to that in a minute.

  • 1983: 20 MAF

  • 1984: 21.6 MAF

  • 1985: 18.2 MAF

  • 1986: 18.4 MAF

To put this in context, consider inflows during the four biggest water years of the last two decades:

  • 2011: 16.3 MAF

  • 2008: 12.4 MAF

  • 2019: 11.7 MAF

  • 2005: 11.4 MAF

And, just to give you an idea of the dismal state of the Colorado River currently:

  • 2021: 4.03 MAF

1983, the last time the spillways at Glen Canyon and Hoover Dams were used, was a remarkable year in many ways. The winter started out above average in terms of snowfall, but not wildly so. Then, in March, it started dumping and didn’t stop until the end of May (snowpack peaked on May 20, more than a month later than normal). The temperature shot up rapidly followed by heavy June rains. Glen Canyon’s operators weren’t expecting the deluge and failed to leave enough room in Lake Powell to accommodate it. Source: NRCS and USBR.

Glen Canyon Dam operators are required to send at least 8.23 MAF downstream to Lake Mead each year, but usually only go above that when Powell gets close to full and “equalization” kicks in—it’s basically a “fill Powell first” philosophy. The following Glen Canyon release numbers are guesses based on that. Of course, once Lake Powell is full, then releases would equal inflows.

The equation, then, is:

Begin Water Year Storage + Inflows - (evaporation+withdrawals) = End WY Storage

So, at the end of the nearly unprecedented string of wet years, Lake Powell would be full but Lake Mead still would need another 6 million acre feet of water before the spillways could be used.

Let’s just say I’m feeling better about my spillway “never again” comment.

There is another possible scenario: Four years of giant snow/water years followed by the monster megaflood—the double whammy. That certainly would fill up both Powell and Mead and could lead to a 1983 situation all over again, or worse.

But that doesn’t necessarily mean the spillways would be utilized again. In fact, dam operators will do everything they can to avoid it because they really aren’t intended to be used. In 1983 it wasn’t the big water that forced the spillways into use, it was the dam operators’ failure to prepare for the sudden runoff by releasing enough water beforehand. And that stemmed from faulty weather forecasting.

When the runoff did hit the already full reservoir, it caused the water to spill into the spillways, which are actually tunnels through the cliffs on either side of the dam. A phenomenon called cavitation occurred, in which vapor bubbles in the water collapse, sending shockwaves through the tunnels. That tore huge gouges into the concrete lining and then the rock, which in turn threatened the dam, itself. Plywood extenders were added to the top of Glen Canyon Dam’s spillway gates to stop the water from entering them.

So, even in the extraordinarily unlikely event of a double whammy 1983 water year + a megaflood, dam operators will be ready for it. So, I’m standing by my assertion as rash as it may be: The spillways on both Glen Canyon and Hoover Dams are obsolete, except maybe as extreme skateboarding chutes.


In kinda related news, the federal Energy Information Administration published figures on the effects of last year’s drought on hydropower generation. As expected it was kind of grim, with California facilities only producing about half of what they normally would.

But it’s okay, right? I mean that was last year and now the drought’s over, so … Huh? What’s that? Oh. Oh, dear. This just in: Snowpack levels in the Sierras are between 30 percent and 44 percent of average for this date. Unless the storms come quick and bountiful, it’s going to be another year of diminished hydropower in the Golden State. Not good.


We promised we’d be doing various Colorado River Compact-related coverage this year, so here are a couple pretty fascinating tidbits I found in a 1916 USGS paper on the Colorado River. On the left are population figures for major towns and cities in the Colorado Basin and for the portion of states lying within the Basin. On the right are annual streamflows for the Colorado River above its confluence with the Gila. Turns out the average for that time period was a bit higher than the historic mean, leading Compact negotiators to parcel out more water than actually existed in the river. Whoops!


And, finally, we’ll usher you into the weekend with a challenge: Guess the location of the photo!

Name the formation in the foreground (or the name of the place it is part of), the background, and where the photo was taken from (approximately). The first correct answer gets a free subscription for you or a friend! Jonathan P. Thompson photo.
